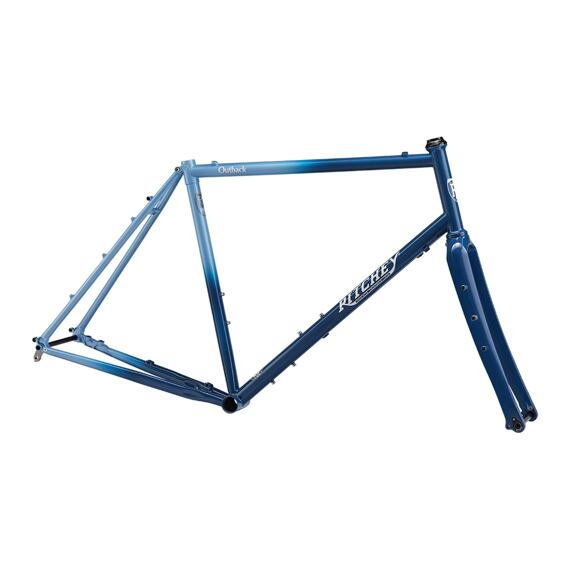

RITCHEY frame OUTBACK 50th Anniversary M

Product description

To celebrate Ritchey’s 50th anniversary and Tom’s enduring and influential spirit of off-road adventure, the 50th Anniversary Outback proudly sports a Half Moon Blue paint scheme - an amazingly beautiful light blue to deep blue fade that truly moves the soul. Additionally, this limited-edition gravel rig is adorned with special Ritchey logos that reference the company's history and the influence Palo Alto, California has had on Tom.

The stunning aesthetics of this special Outback aside, the frameset retains everything the bike is known for. It sports several practical and adaptable features that offer riders the ability to chase epic ride experiences beyond the end of the road and the end of the day. Rack and fender mounts help to keep things dry and expand the load-carrying capacity for longer bikepacking adventures, while clearance for 700c x 48mm or 650b x 2.0in tires opens up a whole new world of possibilities. The frame accepts flat-mount disc calipers, and the all-carbon fiber Ritchey Adventure Fork with multi-purpose mounts on the legs gives you more places to stow the supplies you gather at the last cafe.

Painstakingly TIG-welded with proprietary triple-butted Ritchey Logic steel tubing, the Outback frame delivers the legendary Ritchey ride quality that’s resilient over the harshest terrain and delightfully responsive when you want to open it up.

Road, off-road, trail, expedition, you name it...the 50th Anniversary Ritchey Outback is designed do it all.

Specifications:

FRAME

• Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
• Ultra-light forged and machined straight 1-1/8" headtube
• Seat tube clamp size: 28.6mm (2.5Nm max for derailleur clamps and chain guides)
• 27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
• Bottom bracket: 68mm - English threaded
• 142mm spacing (12mm alloy thru-axle included)
• Crankset min/max ring size - single: 36 to 46t / double: 46/30t to 50/34t
• Can accommodate 1X or 2X chainrings
• Bottle mounts: 3
• Rack and fender mounts
• External cable routing
• WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
• Replaceable stainless-steel derailleur hanger

FORK

• New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
• 1-1/8" straight steerer with integrated 45-degree crown race
• Steerer length: 300mm
• Fork length: 390mm
• Axle-crown: 393mm
• Rake/Offset: 50mm
• 100mm spacing (12mm alloy thru-axle included)
• Fork max payload: 3kg per side
• 30mm maximum spacers below stem

TIRE COMPATIBILITY

• Wheel and tire compatibility: 700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)
• Frame max spacing: 58mm
• Fork max spacing: 60mm

BRAKE COMPATIBILITY

• Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately)
• Frame flat-mount bracket height: 10mm

DETAILS

• Frame weight: 2,175g (size L - w/o thru-axle)
• Fork weight: 445g (with uncut steerer / not including axle)
• Color: Half Moon Blue
